P76

Fuel Tank and equipment

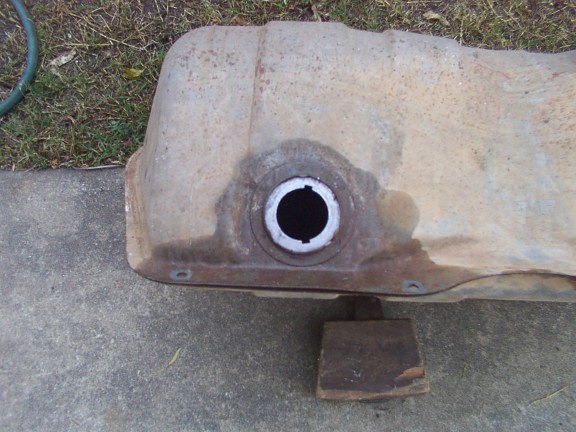

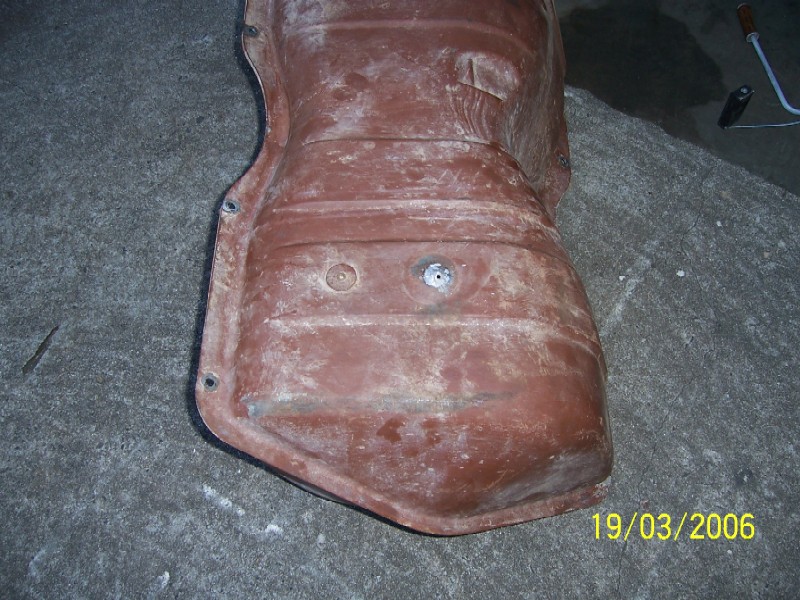

This tank had a problem with the weld not holding the balfolds and forming a hole

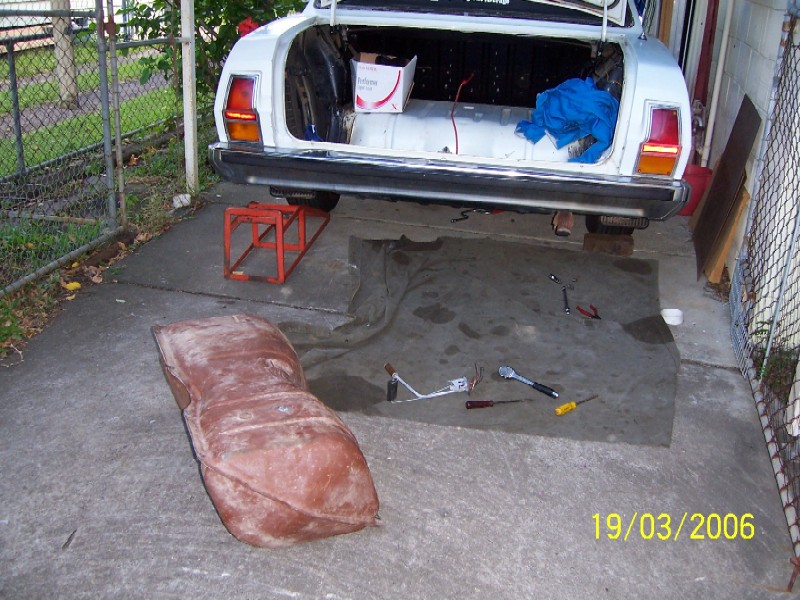

The tank bolts up behind the boot and holds 65 litres of fuel.

Fuel senders

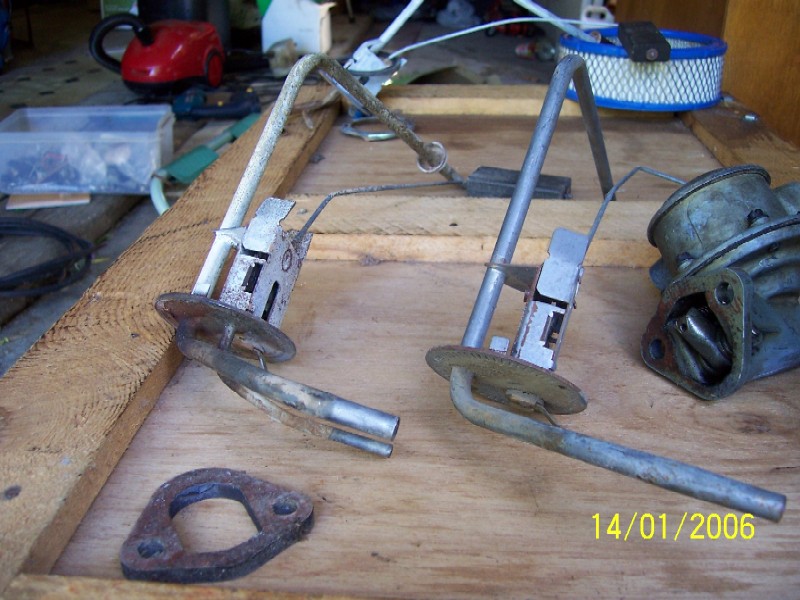

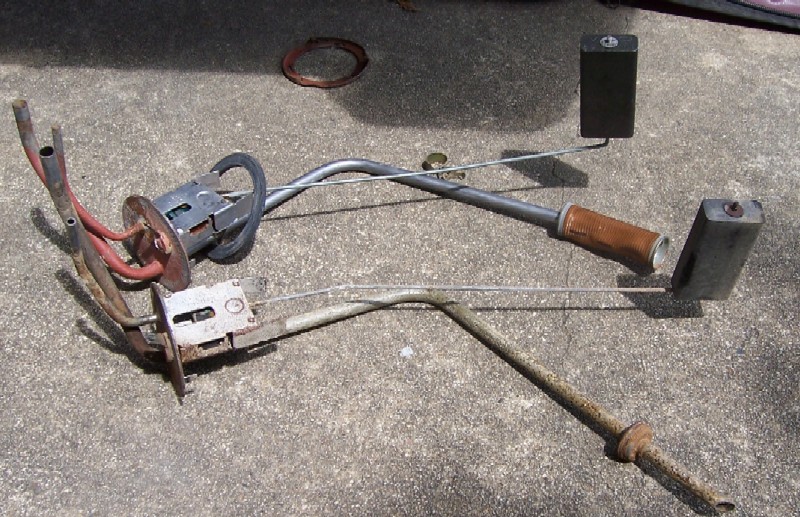

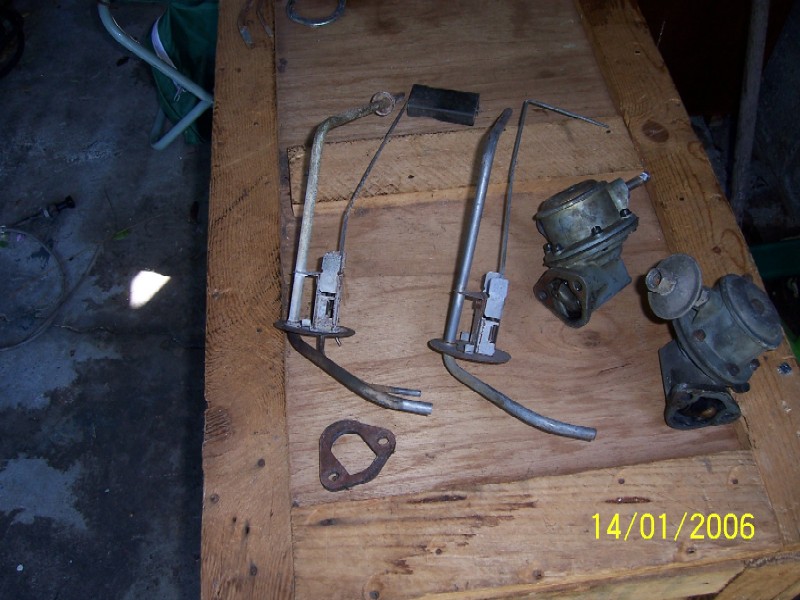

The two different types of sender units used in the P76.
You will notice the later models (both six and V8) have two pipes and was used to return fuel from the carbureter . (this over come some of the early problems with vapouration of fuel).

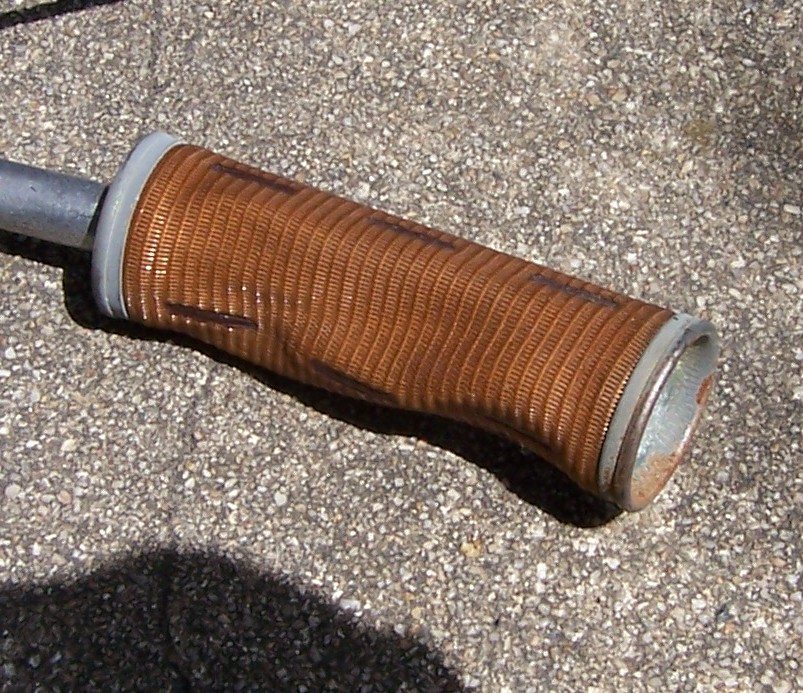

This is a filter found on the bottom of the sender to stop rubbish getting into the mechanical fuel pumps.
You may find that this will disovle with the new fuels



Fuel pumps

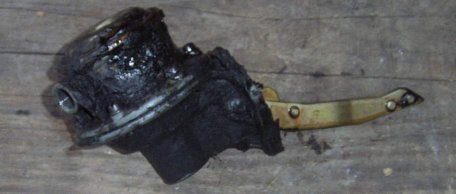

This is V8 mechaical fuel pump and is found under the alternator on the left hand side of the engine.
This sometimes is prone to leaking oil from the gasket.
The V8 model has a large lever.


The six E series engine used the a similar unit but with a shorter arm on the pump and ran off the camshaft on the opposite side of the manifold.

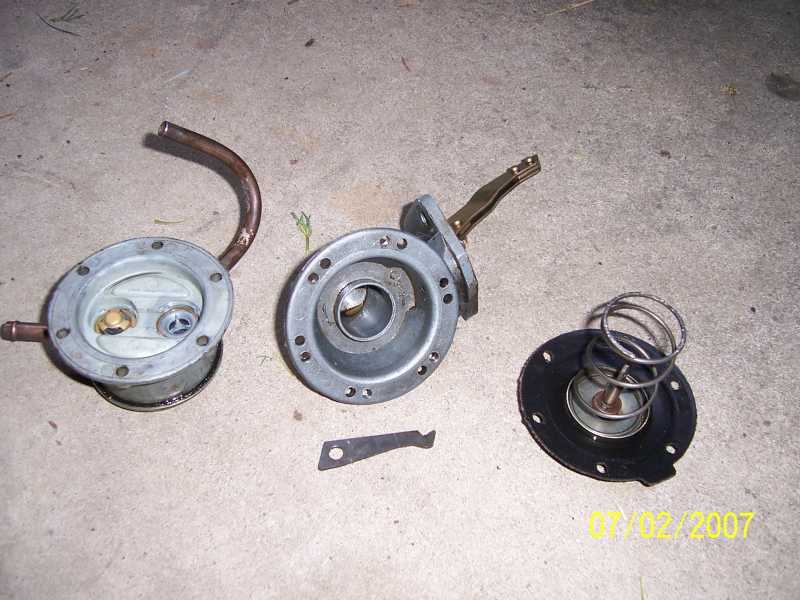

Breakdown of Mechanical Pump

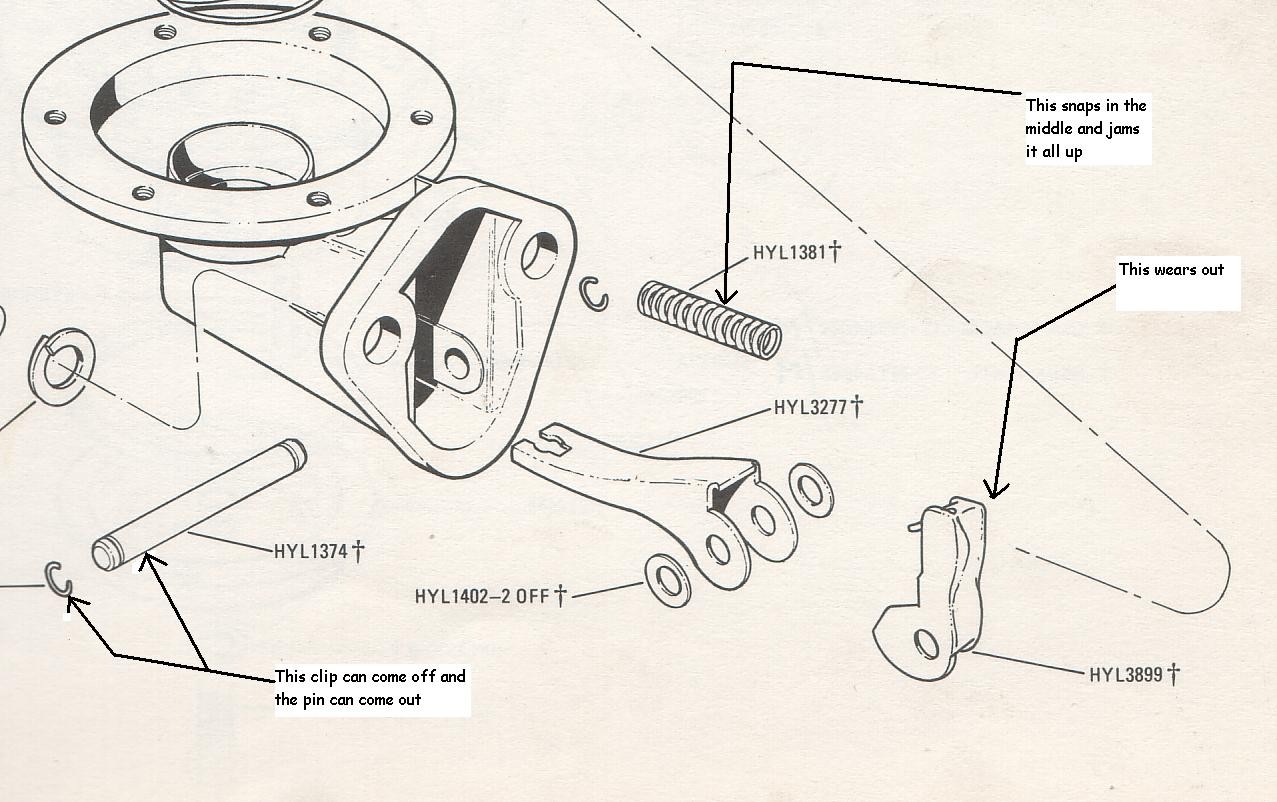

Breakdown of the Six mechanical fuel pump

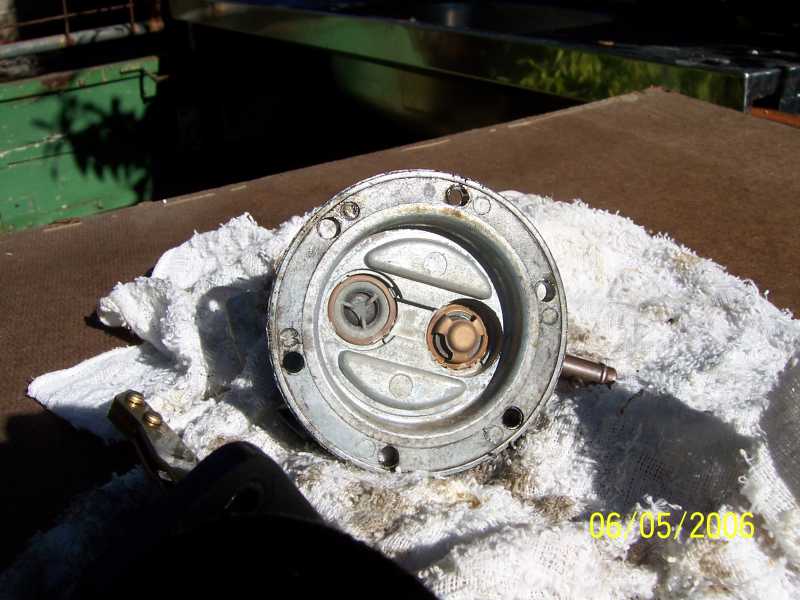

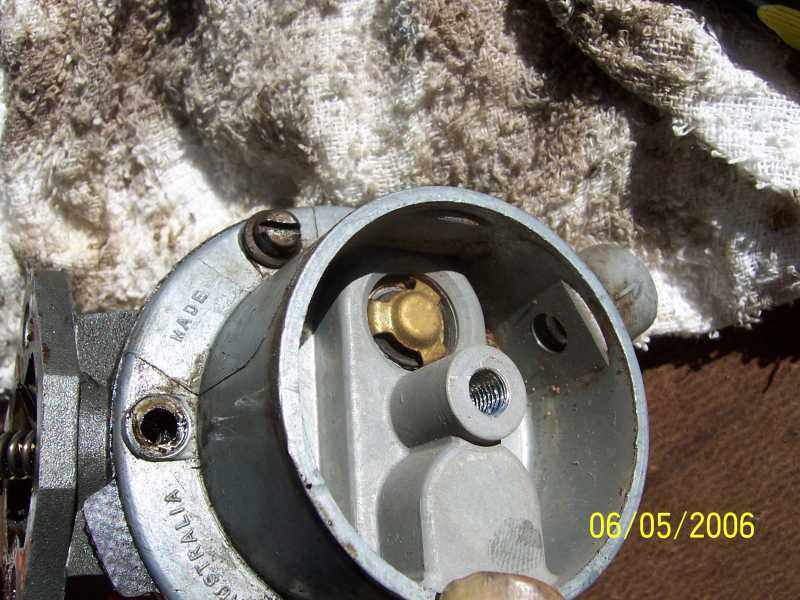

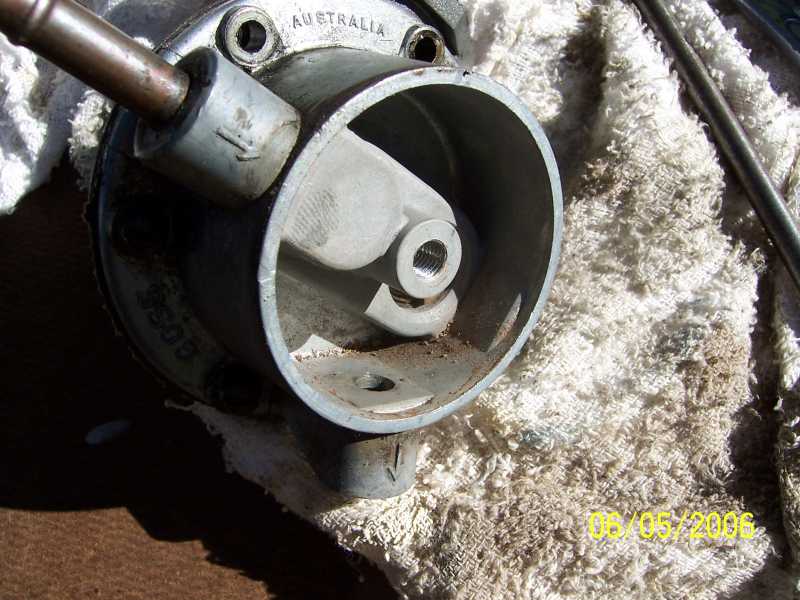

Inside a mechanical pump


V8 version

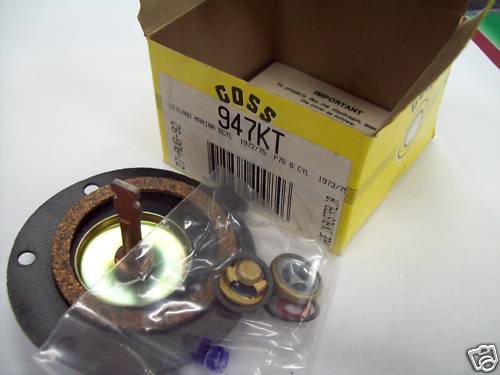

When you breakdown the mechanical pump you can fix it with the Goss Kit.

Electric Fuel Pumps

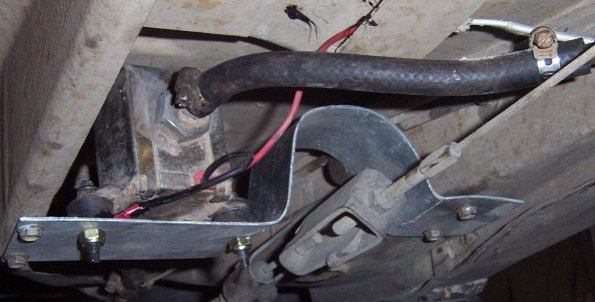

Electric pump located near the fuel tank lefthand rear.

No Mechical Pump


A lot of cars now use the electric petrol pump and you can tell this by a plate having been placed over the hole.
